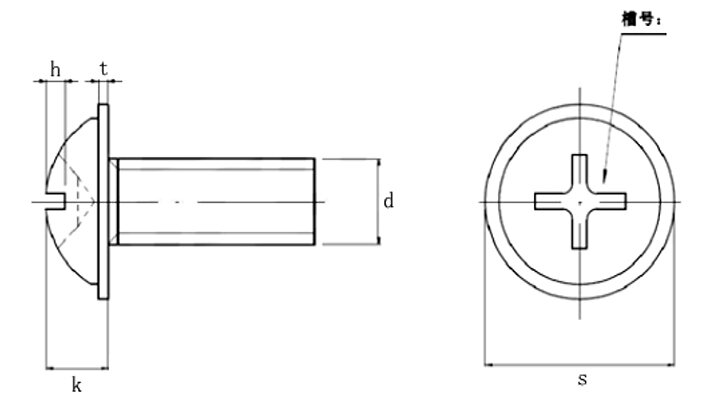

Cross pan head machine screw with washer
DIN967
Diameter range: M1.4-M6 Length range: 2mm-100mm
| standard | DIN German standard |
|---|---|
| Groove | Cross recess |
| head shape | pan head |
| Thread | Fully threaded |
| (mm) | M3 | M3.5 | M4 | M5 | M6 | M8 |
|---|---|---|---|---|---|---|
| P | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 |
| da(max) | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 |
| dc(max) | 7.5 | 9 | 10 | 11.5 | 14.5 | 19 |
| dc(min) | 6.92 | 8.42 | 9.42 | 10.8 | 13.8 | 18.16 |
| k(max) | 2.35 | 2.6 | 3.05 | 3.55 | 4.55 | 5.9 |
| k(min) | 2.1 | 2.35 | 2.75 | 3.25 | 4.25 | 5.6 |
| h(max) | 0.8 | 0.9 | 1.1 | 1.35 | 1.8 | 2.2 |
| h(min) | 0.6 | 0.7 | 0.9 | 1.05 | 1.4 | 1.8 |
| r(min) | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 |
| No. | 1 | 2 | 2 | 2 | 3 | 4 |
| M | 3 | 4.2 | 4.6 | 5 | 7.1 | 9 |
| t(min) | 1.35 | 1.4 | 1.8 | 2.26 | 3 | 4.18 |
| t(max) | 1.8 | 2.03 | 2.46 | 2.87 | 3.66 | 4.68 |
| steel | Stainless steel | ||
| General technical conditions | ISO 8992 | ||
| Cross recess | DIN EN ISO 4757 | ||
| Thread | tolerance | 6g | |
| standard | DIN EN ISO 262、DIN ISO 965-2 | ||
| Mechanical properties | Grade | 4.8 | A2-70 |
| standard | DIN EN ISO 898-1 | DIN EN ISO 3506-1 | |
| tolerance | Product grade | A | |
| standard | DIN EN ISO 4759-1 | ||
| surface treatment | Without treatment; | without treatment | |
| Electroplating technology requirements are in accordance with DIN EN ISO 4042; | |||
| Technical requirements for electroless zinc flake coating according to DIN EN ISO 10683 | |||
| surface defects | DIN EN 26157-1 | ||
| Acceptance and packaging | DIN EN ISO 3269 | ||
