Double stack lock washers

DIN25201

双叠自锁垫圈

双叠自锁垫圈 - Image 2

Diameter range Φ3-Φ130

Material

Grade

Surface

Clear

standard	DIN German standard
Material	316L, 65Mn, 304
Grade	A4-80, A2-70
Surface	Whitewash, Dacromet

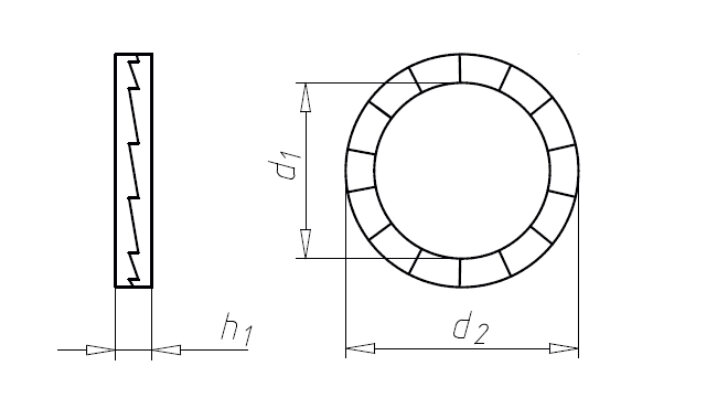

Specifications

(mm)	Φ3	Φ3.5	Φ4	Φ5	Φ6	Φ8	Φ10	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ24	Φ27	Φ30	Φ33	Φ36	Φ39	Φ42	Φ45	Φ48	Φ52	Φ56	Φ60	Φ64	Φ68	Φ70	Φ76	Φ80	Φ85	Φ90	Φ95	Φ100	Φ105	Φ110	Φ115	Φ120	Φ125	Φ130
d(max)	3.5	4	4.5	5.5	6.6	8.8	10.9	13.2	15.4	17.2	19.7	21.6	23.6	25.5	28.6	31.6	34.6	37.6	40.6	43.5	46.7	50.1	54.1	59.6	63.6	67.6	71.6	75.6	79.6	83.6	88.6	92.9	97.9	103.9	108.9	113.9	118.9	123.9	128.9	133.9
d(min)	3.3	3.8	4.3	5.3	6.3	8.6	10.5	12.8	15	16.8	19.3	21.2	23.2	25.1	28.2	31.2	34.2	37.2	40.2	43	46.2	49.6	53.6	59.1	63.1	67.1	71.1	75.1	79.1	83.1	88.1	92.4	97.4	103.4	108.4	113.4	118.4	123.4	128.4	133.4
dc(max)	7.2	7.8	7.8	9.2	11	13.7	16.8	19.7	23.2	25.6	29.2	30.9	34.7	39.2	42.3	47.3	48.8	55.3	58.8	63.3	70	75	80	85	90	95	100	105	110	115	120	130	135	145	150	155	165	170	173	178
dc(min)	6.8	7.4	7.4	8.8	10.6	13.3	16.3	19.3	22.8	25.2	28.8	30.5	34.3	38.8	41.7	46.7	48.2	54.7	58.2	62.7	68	73	78	83	88	93	98	103	108	113	118	128	133	143	148	153	163	168	171	176
H(max)	2.05	2.05	2.05	2.05	2.05	2.75	2.75	2.75	3.65	3.65	3.65	3.65	3.65	3.65	6.05	6.05	6.05	6.05	6.05	6.05	7.75	7.75	7.75	7.75	7.75	7.75	10.25	10.25	10.25	10.25	10.25	10.25	10.25	10.25	10.25	10.25	10.25	10.25	10.25	10.25
H(min)	1.55	1.55	1.55	1.55	1.55	2.25	2.25	2.25	3.15	3.15	3.15	3.15	3.15	3.15	5.55	5.55	5.55	5.55	5.55	5.55	6.25	6.25	6.25	6.25	6.25	6.25	8.75	8.75	8.75	8.75	8.75	8.75	8.75	8.75	8.75	8.75	8.75	8.75	8.75	8.75

*本页面所示表格数据以常规规格供货为主,仅供参考,与产品相关标准、规格、涂层、性能等具体参数，请以我司实际报价和供货为准。
如有特殊要求, 请参考具体标准内容或来电垂询。
涉及企业标准验收、特殊质量协议及要求、特殊证明，请咨询。
