Knurled step nut

DIN466

滚花台阶螺母

滚花台阶螺母 - Image 2

Diameter range: M2-M10

standard	DIN German standard
head shape	big cylinder
Material	304
Grade	A2-70
Surface	whitewash
Thread	Fully threaded

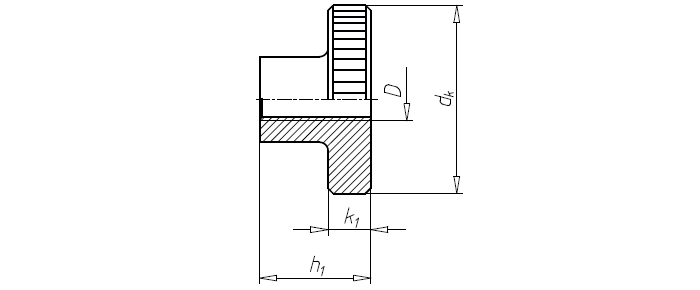

Specifications

(mm)	M1	M1.2	M1.4	M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M8	M10
P	0.25	0.25	0.3	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
dk max	5.74	6.24	7.29	7.79	9.29	11.35	12.35	14.35	16.35	20.42	24.42	30.42	36.5
dk min	5.26	5.76	6.71	7.21	8.71	10.65	11.65	13.65	15.65	19.58	23.58	29.58	35.5
ds max	2.8	3	3.5	3.8	4.5	5	6	7	8	10	12	16	20
ds min	2.55	2.75	3.2	3.5	4.2	4.7	5.7	6.64	7.64	9.64	11.57	15.57	19.48
h max	3.5	4	4.7	5	5.3	6.5	7.5	8.5	9.5	11.5	15	18	23
h min	3.2	3.7	4.4	4.7	5	6.14	7.14	8.14	9.14	11.07	14.57	17.57	22.48
k max	1.5	1.5	2	2	2	2.5	2.5	3	3.5	4	5	6	8
k min	1.25	1.25	1.75	1.75	1.75	2.25	2.25	2.75	3.2	3.7	4.7	5.7	7.64

*本页面所示表格数据以常规规格供货为主,仅供参考,与产品相关标准、规格、涂层、性能等具体参数，请以我司实际报价和供货为准。
如有特殊要求, 请参考具体标准内容或来电垂询。
涉及企业标准验收、特殊质量协议及要求、特殊证明，请咨询。
