普通型钢丝螺套 – 紧亿五金

Ordinary wire thread insert

GB24425.1

普通型钢丝螺套

普通型钢丝螺套 - Image 2

Diameter range: M2-M39

Material

Grade

Clear

standard	GB national standard
Surface	whitewash

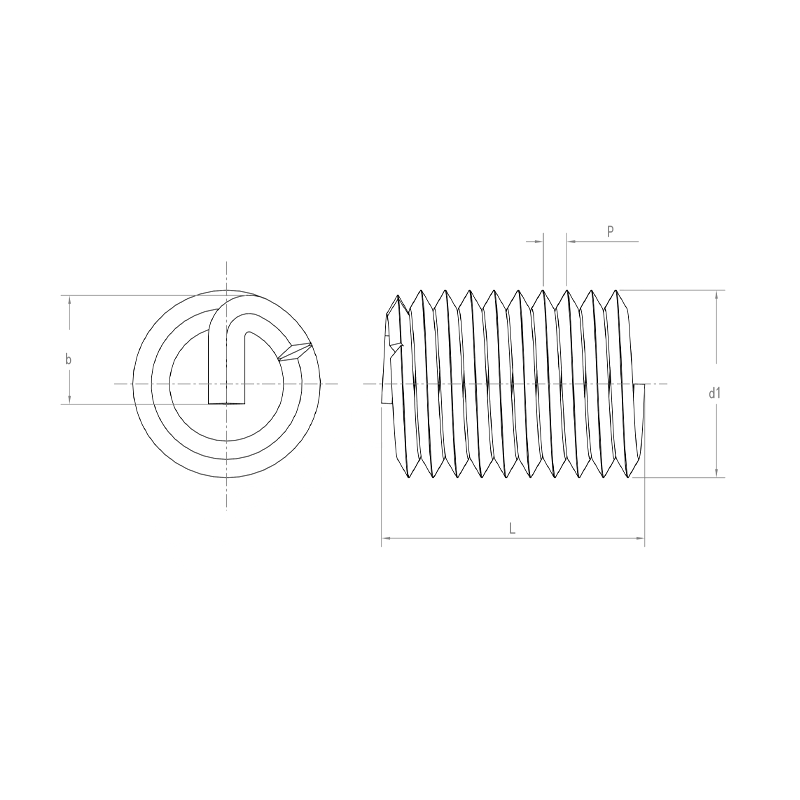

Specifications

(mm)	M2	M2.5	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39
P	0.4	0.45	0.5	0.7	0.8	1	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4
d1(min)	2.53	3.2	3.8	5.06	6.25	7.58	8.58	9.85	12.1	14.5	16.87	18.87	21.4	23.46	25.61	28.15	31.15	34.7	37.7	41.33	44.33
d1(max)	2.7	3.7	4.35	5.6	6.8	7.95	9.2	10.35	12.8	15	17.87	19.9	22	24.4	26.9	29.1	32.4	35.81	39.01	42.67	45.75
b(min)	1.2	1.5	1.8	2.4	2.9	3.5	4	4.7	5.8	6.9	8.1	9.1	10.4	11.4	12.4	13.6	15.1	16.9	18.4	20.2	21.7
b(max)	1.6	2	2.4	3.2	4	4.8	5.5	6.3	7.9	9.5	11	12.5	14.2	15.7	17.2	18.8	21.1	23.4	25.7	28.1	30.3

*本页面所示表格数据以常规规格供货为主,仅供参考,与产品相关标准、规格、涂层、性能等具体参数，请以我司实际报价和供货为准。
如有特殊要求, 请参考具体标准内容或来电垂询。
涉及企业标准验收、特殊质量协议及要求、特殊证明，请咨询。
