一字半沉头机螺钉 – 紧亿五金

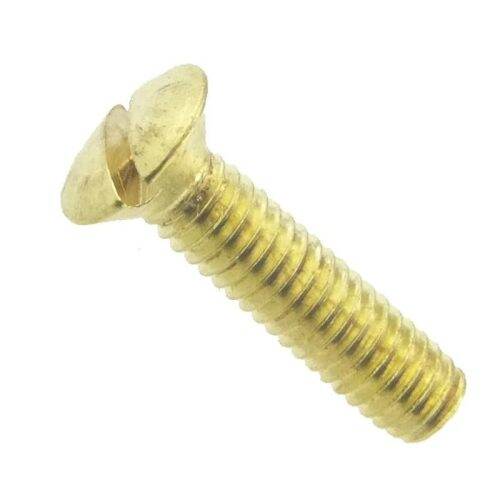

Slotted countersunk head machine screws

DIN964

一字半沉头机螺钉

一字半沉头机螺钉 - Image 2

Diameter range: M1.6-M10 Length range: 4mm-100mm

Material

Grade

Clear

standard	DIN German standard
head shape	half sunken head
Groove	Slotted, slotted
Thread	Fully threaded
Surface	whitewash

Specifications

(mm)	M1	M1.2	M1.4	M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M8	M10
P	0.25	0.25	0.3	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
dk(max)	1.9	2.3	2.6	3	3.8	4.7	5.6	6.5	7.5	9.2	11	14.5	18
dk(min)	1.76	2.06	2.46	2.86	3.5	4.4	5.3	6.14	7.14	8.84	10.57	14.07	17.5
f	0.25	0.3	0.35	0.4	0.5	0.6	0.75	0.9	1	1.25	1.5	2	2.5
k(max)	0.6	0.72	0.84	0.96	1.2	1.5	1.65	1.93	2.2	2.5	3	4	5
n(min)	0.31	0.36	0.36	0.46	0.56	0.66	0.86	0.86	1.06	1.26	1.66	2.06	2.56
n(max)	0.45	0.5	0.5	0.6	0.7	0.8	1	1	1.2	1.51	1.91	2.31	2.81
t(min)	0.4	0.5	0.52	0.65	0.8	1	1.2	1.4	1.6	2	2.5	3.2	3.8
t(max)	0.5	0.6	0.65	0.8	1	1.2	1.45	1.7	1.9	2.3	2.8	3.7	4.6

*本页面所示表格数据以常规规格供货为主,仅供参考,与产品相关标准、规格、涂层、性能等具体参数，请以我司实际报价和供货为准。
如有特殊要求, 请参考具体标准内容或来电垂询。
涉及企业标准验收、特殊质量协议及要求、特殊证明，请咨询。
