弹簧垫圈 – 紧亿五金

spring washer

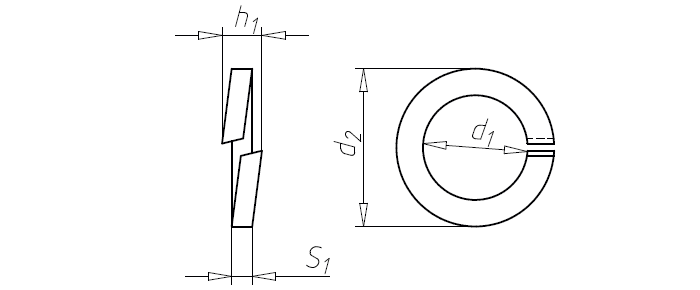

DIN127

弹簧垫圈

弹簧垫圈 - Image 2

Diameter range Φ2-Φ36

Material

Clear

standard	DIN German standard
Material	304, 316
Surface	whitewash
hardness	100HV

Specifications

(mm)	Φ3	Φ3.5	Φ4	Φ5	Φ6	Φ7	Φ8	Φ10	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ24	Φ27	Φ30	Φ36	Φ39	Φ42	Φ45	Φ48	Φ52	Φ56	Φ60	Φ64	Φ68	Φ72	Φ80	Φ90	Φ100
d(min)	3.1	3.6	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	22.5	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49	53	57	61	65	69	73	81	91	101
d(max)	3.4	3.9	4.4	5.4	6.5	7.5	8.5	10.7	12.7	14.7	17	19	21.2	23.5	25.5	28.5	31.7	37.7	40.7	43.7	46.7	50.5	54.5	58.5	62.5	66.5	70.5	74.5	82.5	92.5	102.5
b(max)	1.4	1.4	1.6	1.9	2.65	2.65	3.15	3.7	4.2	4.7	5.2	5.2	6.2	6.2	7.25	7.25	8.25	10.25	10.25	12.25	12.25	12.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25
b(min)	1.2	1.2	1.4	1.7	2.35	2.35	2.85	3.3	3.8	4.3	4.8	4.8	5.8	5.8	6.75	6.75	7.75	9.75	9.75	11.75	11.75	11.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75
h(max)	0.9	0.9	1	1.3	1.7	1.7	2.1	2.35	2.65	3.15	3.7	3.7	4.2	4.2	5.2	5.2	6.2	6.2	6.2	7.25	7.25	7.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25
h(min)	0.7	0.7	0.8	1.1	1.5	1.5	1.9	2.05	2.35	2.85	3.3	3.3	3.8	3.8	4.8	4.8	5.8	5.8	5.8	6.75	6.75	6.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75
H(min)	1.9	1.9	2.1	2.7	3.6	3.6	4.6	5	5.8	6.8	7.8	7.8	8.8	8.8	11	11	13.6	13.6	13.6	15.6	15.6	15.6	18	18	18	18	18	18	18	18	18
H(max)	2.1	2.2	2.5	3.2	4.2	4.2	5.4	5.9	6.8	8	9.2	9.2	10.4	10.4	13	13	16.1	16.1	16.1	18.4	18.4	18.4	21.2	21.2	21.2	21.2	21.2	21.2	21.2	21.2	21.2
dc(max)	6.2	6.7	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	35.9	40	43	48.2	58.2	61.2	68.2	71.2	75	83	87	91	95	99	103	111	121	131

*本页面所示表格数据以常规规格供货为主,仅供参考,与产品相关标准、规格、涂层、性能等具体参数，请以我司实际报价和供货为准。
如有特殊要求, 请参考具体标准内容或来电垂询。
涉及企业标准验收、特殊质量协议及要求、特殊证明，请咨询。
